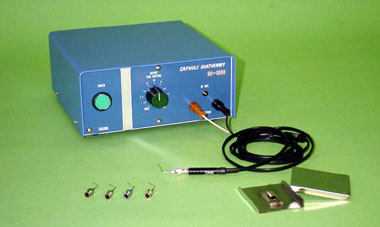

TMI CAPSULE DIATHERMY CD-1000

Circular Curvilinear Capsulorhexis(CCC),which plays an important roll
In ophthalmic operations for cataract treatment, uses cystotome needles and
Extractors. Often, however, there are difficulties when this method is
Used for spedcial cases, such as mature cataract, intumescent
Cataract cloud cornea, mydriatic trouble,.
CD-1000 is an device whichincises ananterior capsule to an optional size in a ccc
Operation by utilizing the properties of high-frequency electric current.
With CD-1000 you can realize a safe assured ccc operation only by slightly pressing
the anterior capusule by the tip of an electrode needle and the sliding the tip over
the capusule as if you were drawing a circle there.

œSpecification
Consumption Power  20VA
Oscillation Frequency: 440kHz.
Maximum Output :3.5W
Electrode Needle:23G
Measurement:195(W) X200(D)X90(H)mm
Net Weight :3kgs.
